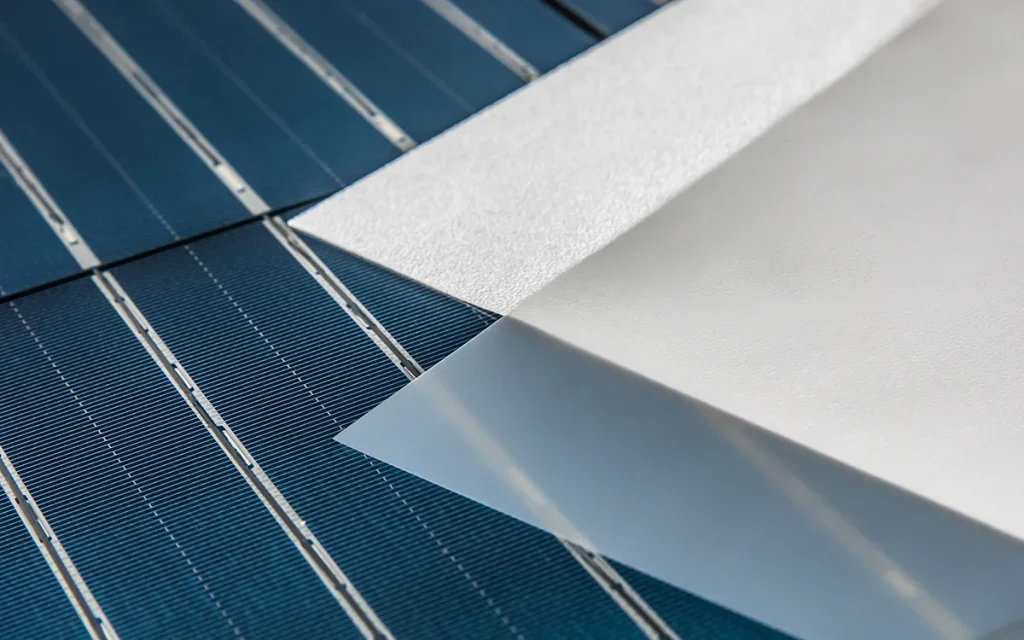

EVA Solar Film
We manufacture high-performance EVA (Ethylene Vinyl Acetate) encapsulation films designed for long-term protection, high transparency, anti-PID, and excellent adhesion in photovoltaic modules.
Main Features of Our EVA Solar Films
Excellent Optical Transparency
- Light transmittance can exceed 91%, reducing optical loss and improving module power output.
Strong Adhesion Performance
- Provides excellent adhesion to glass, backsheet, and solar cells, reducing the risk of delamination.
Fast & Stable Crosslinking
- Compatible with mainstream lamination processes, offering high crosslinking efficiency and stable lamination performance.
High Anti-PID Performance
- Volume resistivity reaches up to 1 x 10^15 Ω·cm, suitable for high-system-voltage PV modules.
Customizable Formulation
- Customized solutions available for different photovoltaic single-glass and double-glass modules.
Long-Term Weather Resistance
- Excellent resistance to UV exposure, damp heat, and thermal aging, ensuring long-term module durability and service life.
Our EVA Solar Film Series
B601HP
Anti-PID & high-transmittance photovoltaic film.
- Thickness: 0.45mm - 0.65mm
- Width: 1000 - 1300mm
- Volume Resistivity: >1×10^15 Ω·cm
- Light Transmittance:
- 280 - 380nm >80%
- 380 - 1100nm >91%
B601P
Anti-PID & UV-cut photovoltaic film.
- Thickness: 0.55mm / 0.65mm
- Width: 1000 - 1300mm
- Volume Resistivity: >1×10^15 Ω·cm
- Light Transmittance:
- 280 - 380nm <20%
- 380 - 1100nm >91%
B601W
Reflect unused sunlight back onto solar cells.
- Thickness: 0.6mm/0.65mm
- Width: 1010 - 1100mm
- 400 - 700nm Reflectivity: ≥91%
- Light Transmittance:
- 280 - 380nm <6%
- 380 - 1100nm >1%
Our EVA Solar Films Comparison
| Technical Properties | ||||||
| Performance Indicators | Test Standard | B601HP | B601P | B601W | B601RS | |
| Features | / | Anti PID High Transmission | Anti PID UV Cut Off | >91% high-reflectivity at 400–700 nm | IR reflectance >70% at 760–1100 nm | |
| Shrinkage Ratio | MD | GB/T29848 | <3.0% | <3.0% | <3.0% | <3.0% |
| TD | GB/T29848 | <1.5% | <1.5% | <1.5% | <2.0% | |
| Light Transmittance | 280 - 380nm | Betterial | >80% | <20% | ＜6.0% | / |
| 380 - 110nm | GB/T29848 | >91% | >91% | ＜1.0% | / | |
| Crosslink Degree | GB/T29848 | >80% | >80% | >75% | >75% | |
| Volume Resistivity | GB/T29848 | >1*10^15Ω·cm | >1*10^15Ω·cm | >1*10^14 Ω·cm | >1*10^14 Ω·cm | |
Reliable Manufacturing Capacity
From raw material selection to final roll packaging, each production batch is controlled and traceable to ensure consistent performance for PV module manufacturers.
- Automated EVA film extrusion lines
- Stable raw material supply chain
- Batch traceability system
- Annual production capacity: 130 GW
- Roll-to-roll quality inspection
- OEM / private label support
- Export packaging available
Customized EVA Film Solutions
Customizable items:
Tell us your photovoltaic module structure, lamination parameters target power and appearance requirements. Our technical team will recommend the most suitable EVA film solution.
Applications
TOPCon Module
- TOPCon modules feature higher power output and a clear trend toward bifacial designs, with stricter requirements for PID resistance, reflection gain, and appearance consistency.
- Suitable EVA encapsulation films: B601HP, B601P, B601W, B601RS

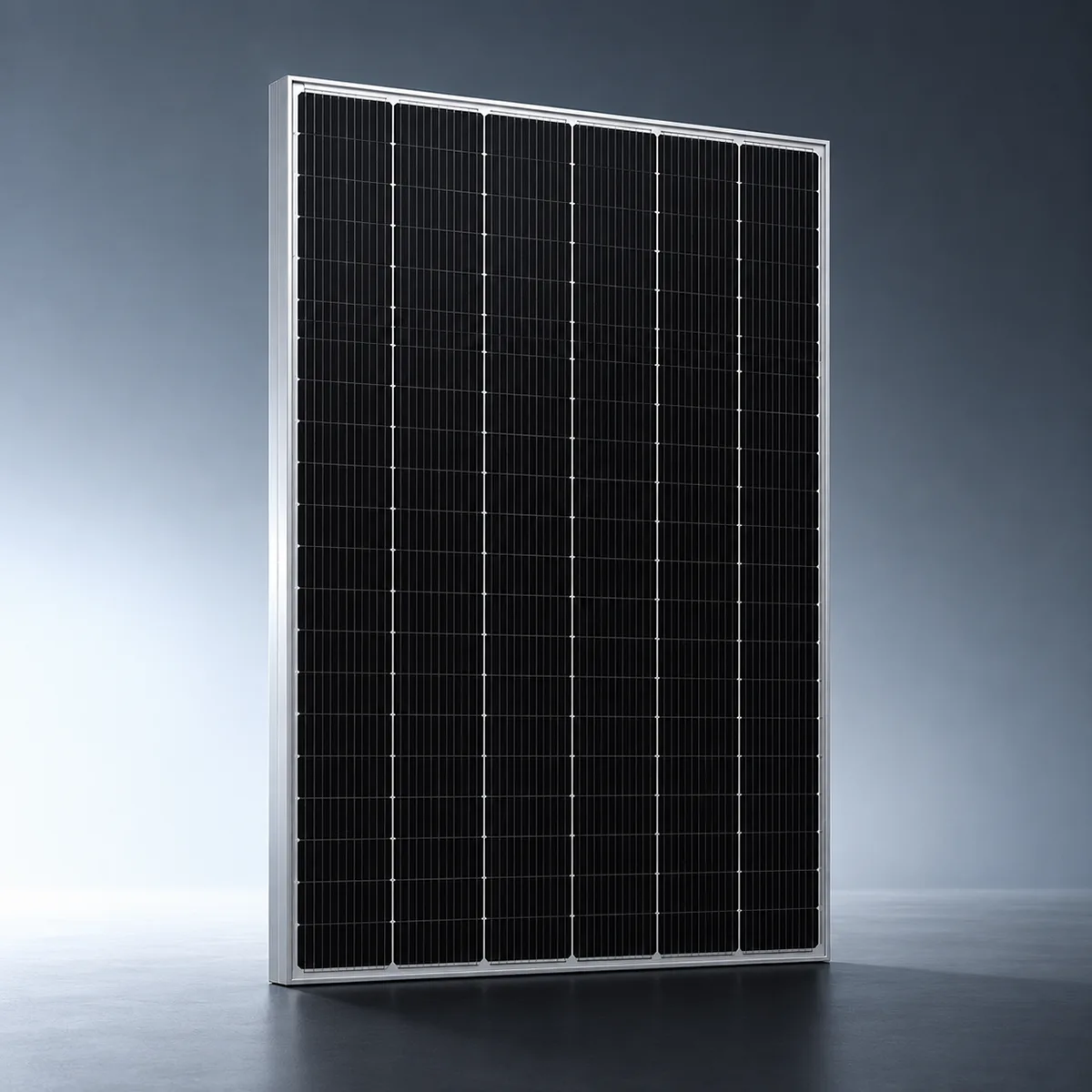

HJT Module
- HJT modules place higher demands on the encapsulation materials in terms of light transmittance, ion stability, and PID suppression capability.
- Suitable EVA encapsulation film: B601HP
BC Module
- BC modules pursue both high efficiency and superior aesthetics, making them suitable for high-reflectivity white films and full-black IR reflective films.
- Suitable EVA encapsulation films: B601HP, B601W, B601RS

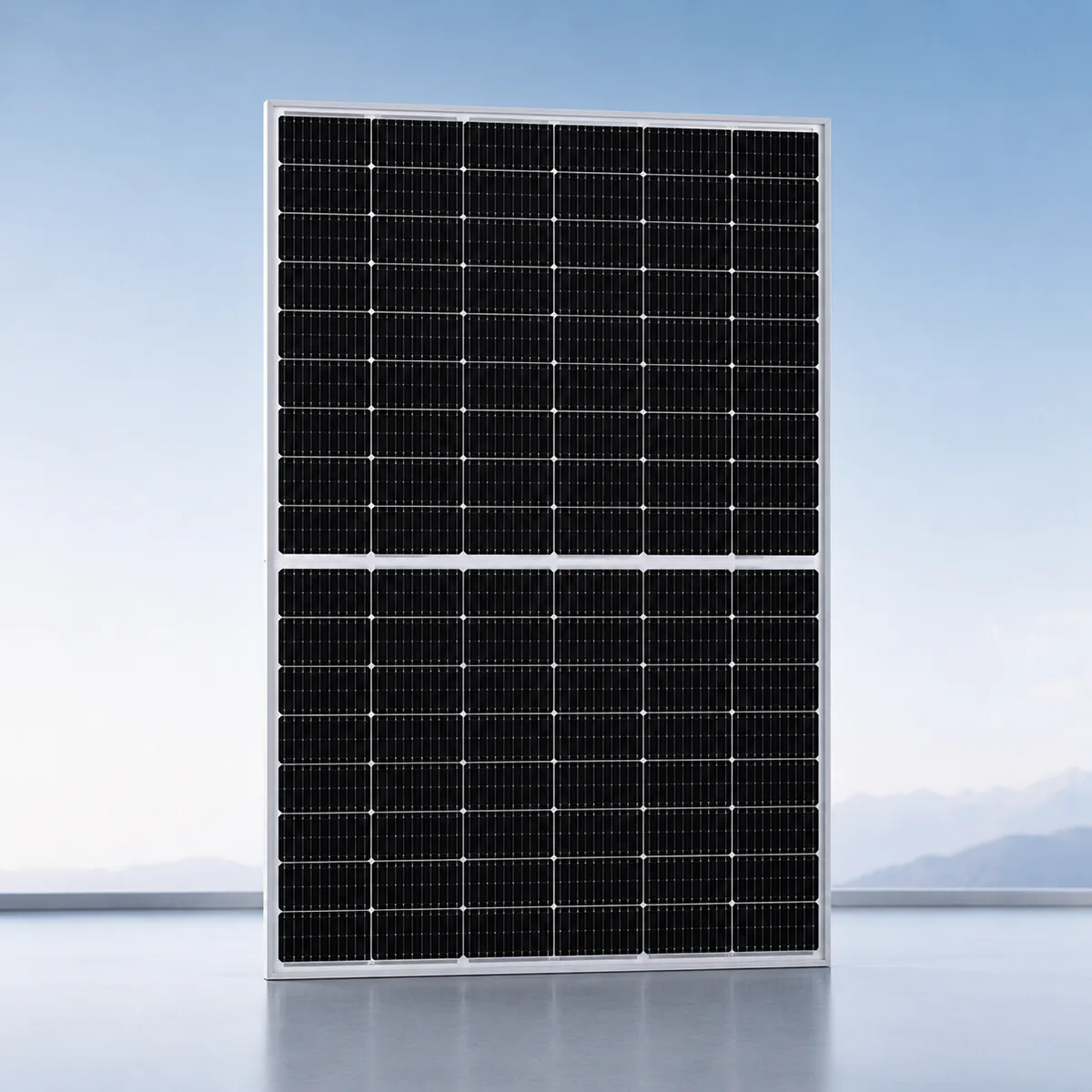

PERC Module
- PERC modules have high requirements for PID resistance, UV aging resistance, and long-term reliability.
- Suitable EVA encapsulation films: B601HP, B601P
Contact Us Now
Looking for Reliable EVA Solar Film Supplier?
Please send us your requirements. Our sales and technical team will provide datasheet, quotation and sample support.
