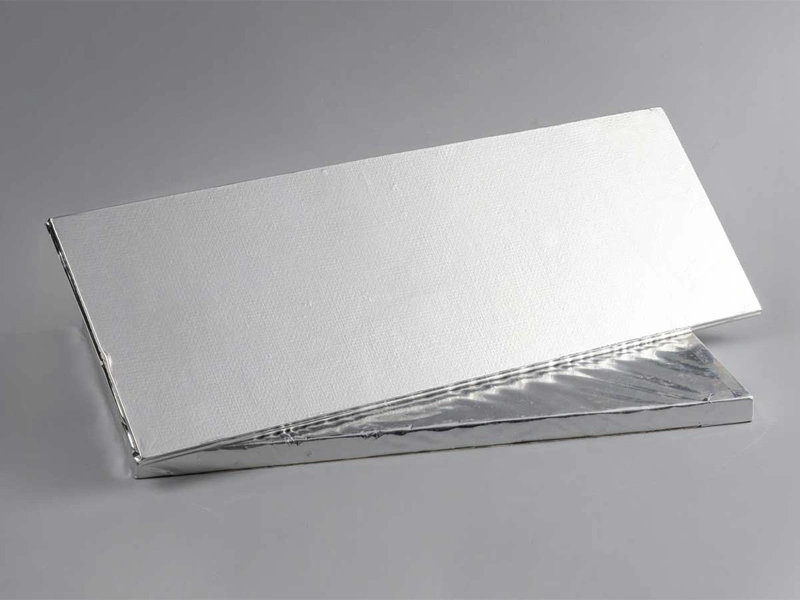

Nano-Silica Composite Thermal Insulation Board
- Nano-silica composite thermal insulation board is designed for thermal protection between cells in power batteries and energy storage batteries.
- It helps block heat transfer from a thermal runaway cell to adjacent cells, suppressing thermal propagation and reducing the risk of chain-reaction thermal runaway, thereby improving overall battery system safety.
Get a Free Consultation
Get a Free Consultation
|
Test Item |
Technical Specifications | Test Standard |
|
Thermal Conductivity at 25°C |
≤0.023w/m·k | GB/T 10295-2008 |
|
Thermal Conductivity at 800°C |
≤0.35w/m·k | GB/T 10294-2008 |
|
Maximum Operating Temperature |
1200℃ | Flame Torch |
|
Density |
350±50kg/m³ | Weighing Method |
|
Length & Width |
Sheet (Can Customized) | Vernier Caliper |
|
Thickness Range |
1-5mm | Thickness Gauge |
|
Asbestos |
No Asbestos | ISO22262-1 |
|
Compression Performance |
15±10%@1MPa | / |
|
Tensile Strength |
>800KPa | GB/T17911-2006 |
|
Insulation Resistance |
2500V DC,60S,>500MΩ | GB/T31838.4-2019 |
|
Withstand Voltage Leakage Current |
5000V DC,60S,<1mA | GB/T31838.4-2019 |
|
Flame Retardant Rating |
V-0 | UL94-2013 |
|
RoHS2.0 |
Meets EU RoHS Compliance Requirements | Compliant with Directive (EU) 2015/863 amending Annex II |
|
REACH |
211 SVHC Test Results≤0.1% | EU REACH Regulation (EC) No. 1907/2006 |
|
ELV |
Meets Automotive Restricted Substance Requirements | GB/T30512-2014 |
