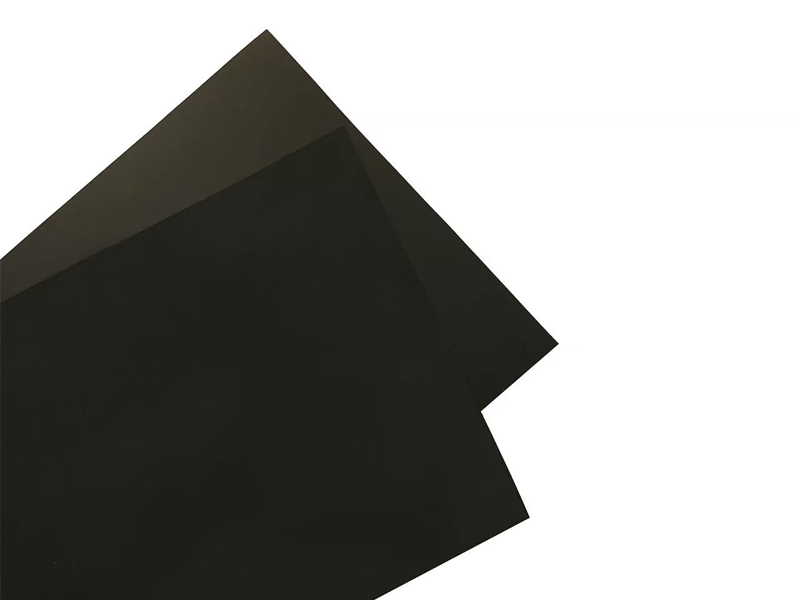

PC Insulation Flame-Retardant Sheet
- PC insulation flame-retardant sheet is a three-layer composite material based on PC polycarbonate, structured with acrylic foam structural adhesive, PC film, and high-tack cotton paper adhesive. It offers excellent electrical insulation, flame retardancy, temperature resistance, dimensional stability, and chemical corrosion resistance.
- Designed for energy storage systems, power batteries, NEV module barriers, and battery top cover insulation sheets, the material provides reliable insulation protection for various battery structural components.
- Custom anti-counterfeiting marks are available, with embossing height controlled within 0.005 mm to help prevent material substitution and ensure consistent product quality.
Get a Free Consultation
Get a Free Consultation
|
Test Item |
Test Condition | Number of Cycles | Standard Specifications |
|
Thickness Range |
/ | / | 0.05-1.0mm |
|
Folding Resistance |
Thickness<0.25mm | / | ≥10 Cycles |
| 0.25mm≤Thickness<0.5mm | ≥6 Cycles | ||
| Thickness>0.5mm | / | ≥4 Cycles | |
|
Tensile Strength |
/ | Machine Direction | ≥55Mpa |
| Transverse Direction | ≥55Mpa | ||
|
Elongation at Break |
/ | Machine Direction | ≥80% |
| Transverse Direction | ≥80% | ||
|
Flame Retardancy: UL94 V-0 |
First Ignition t1 | Sustained burning time after flame removal <10 s | No dripping |
| Second Ignition t2 | Sustained burning time after flame removal <10 s | No dripping | |
|
Thermal Shrinkage |
Thickness≤0.175mm | Machine Direction | ≤1.5% |
| Thickness≤0.175mm | Transverse Direction | ≤0.5% | |
| Thickness>0.175mm | Machine Direction | ≤1.0% | |
| Thickness>0.175mm | Transverse Direction | ≤0.5% | |
|
Environmental Compliance |
Lead Content | < 1000ppm | |
| Cadmium Content | < 100ppm | ||
| Mercury Content | < 1000ppm | ||
| Bromine Content | < 50ppm | ||
